• Blue Light Mode

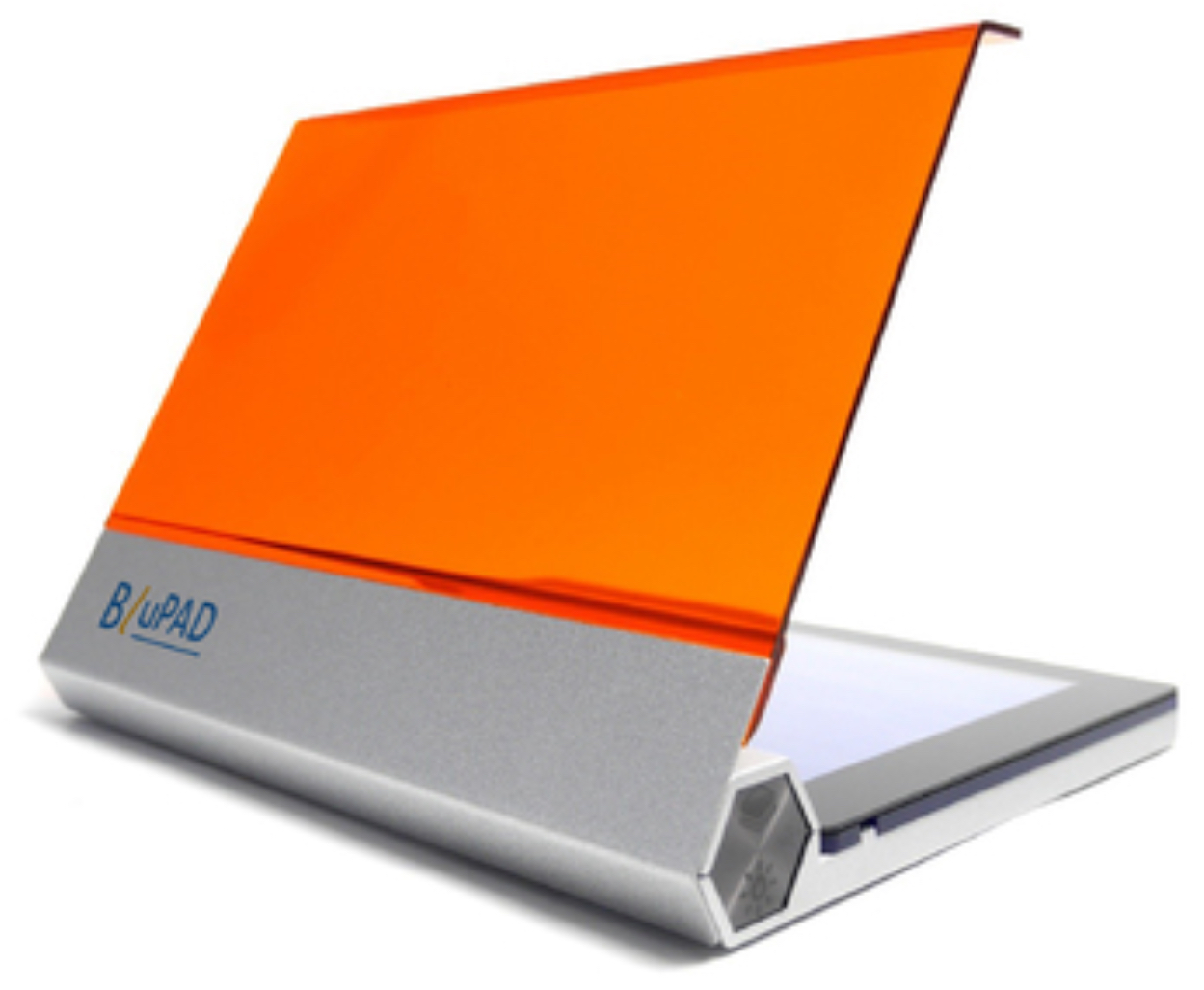

With the 470nm LED light as the excitation light source, the Blue Light mode is applied for observing the qualitative and quantitative nucleic acid or protein experiments using the fluorescent staining reagents. Other than being compatible with our safe reagents, such as the Primer Juice, Novel Juice, Novel Green, Novel Green Plus, OnePCR series, OmniPCR series, Nimble Juice, and Nimble Juice R-TYPE, it also performs well with a majority of fluorescent staining products on the market, such as SYBR Gold, SYBR Green I & II, SYPRO Ruby, SYPRO Orange, and Coomassie Fluor Orange stains, GelStar, GelGreen. The feature of allowing light intensity adjustment at three different levels enables the user to make the light intensity contrast adjustment based on the sample concentration for achieving the best imaging quality. Further, the magnetic amber filter, with the hinges-free design, offers simplicity, safety, and convenience when opening and closing the filter.
▼ Left : Gel Cutting / Right : Imaging
• White Light Mode
By using the whole-wavelength white LED light as the excitation light source, the White Light mode exhibits softness and uniformity and is applicable for observing or imaging the SDS-PAGE gels that are stained with the Coomassie Blue or Silver Stain. It can also be employed as a simple film-viewing transilluminator for checking the X-Ray film for the research or clinical purpose. With the light intensity adjustment function, the contrasting adjustment of the light intensity is enabled at three levels according to the observational requirements for achieving the best imaging quality.
• Field Study Mode
Connectable with the external power bank for the hassle-free field experiments.
*The power bank is NOT INCLUDED in the package and needs to be purchased by the user.
